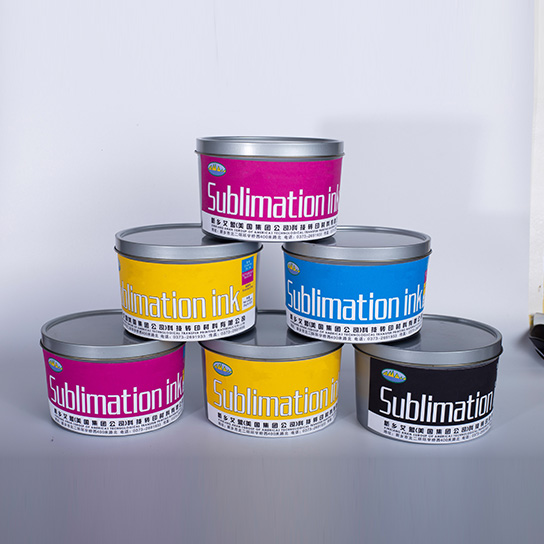

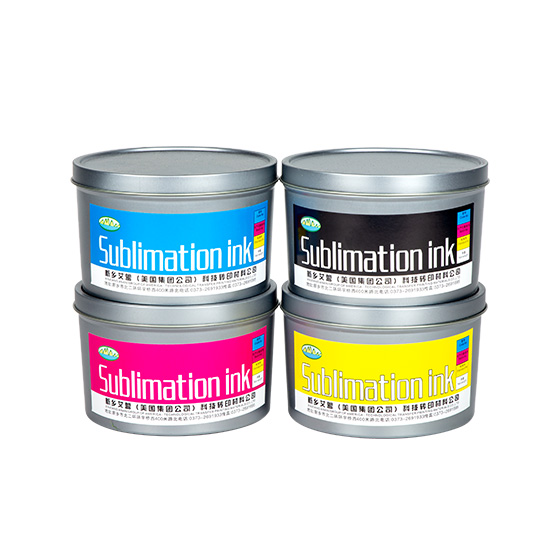

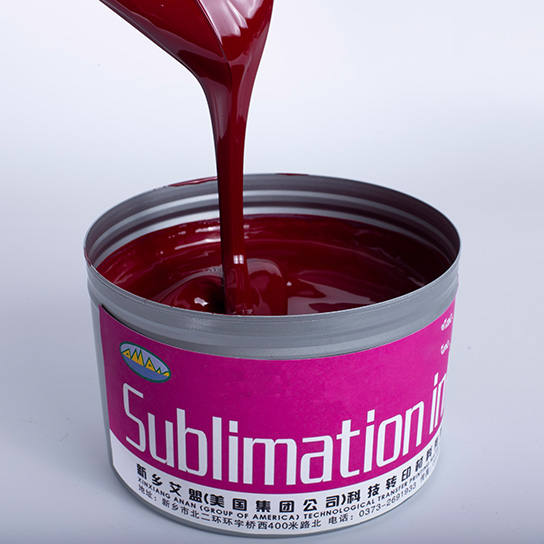

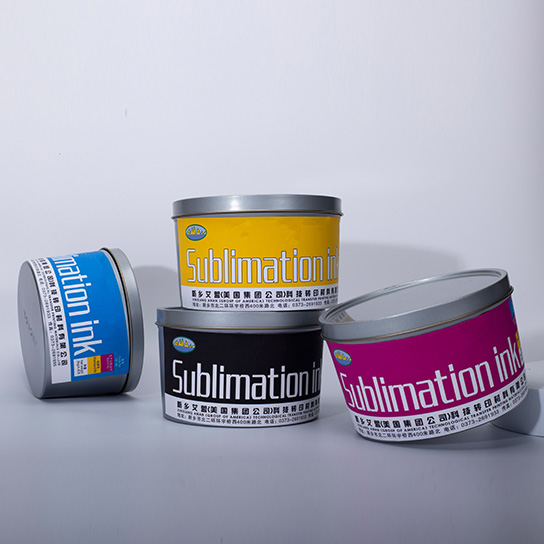

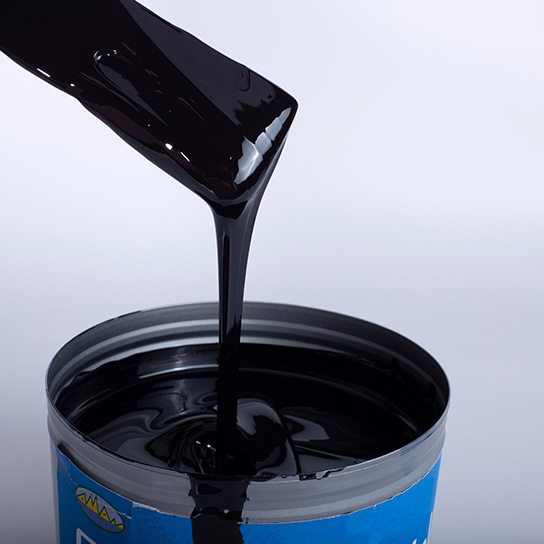

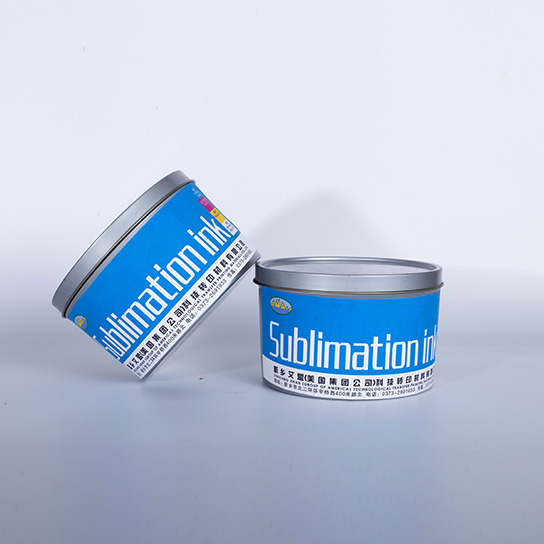

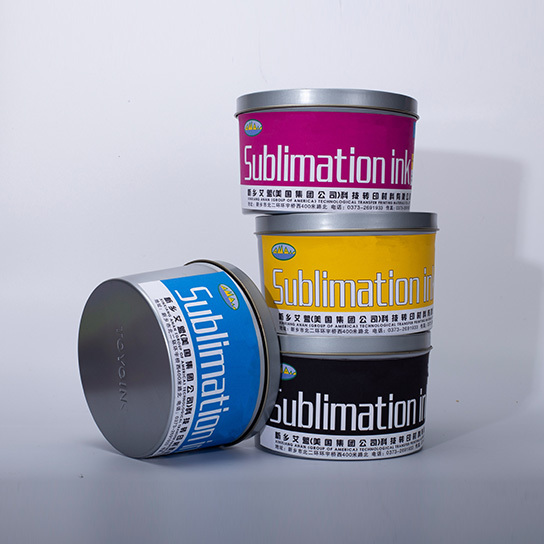

Offset Sublimation Ink

Name: Offset Sublimation Ink

Ink Type: Soy Based Ink

Color: C M Y K

Suitable for : High-spead offset printing machine

Suitable paper: Coated paper, offset paper,chrome paper and calendared paper.

Products Alpplication: polyester fabrics and garment industry

Brief Information

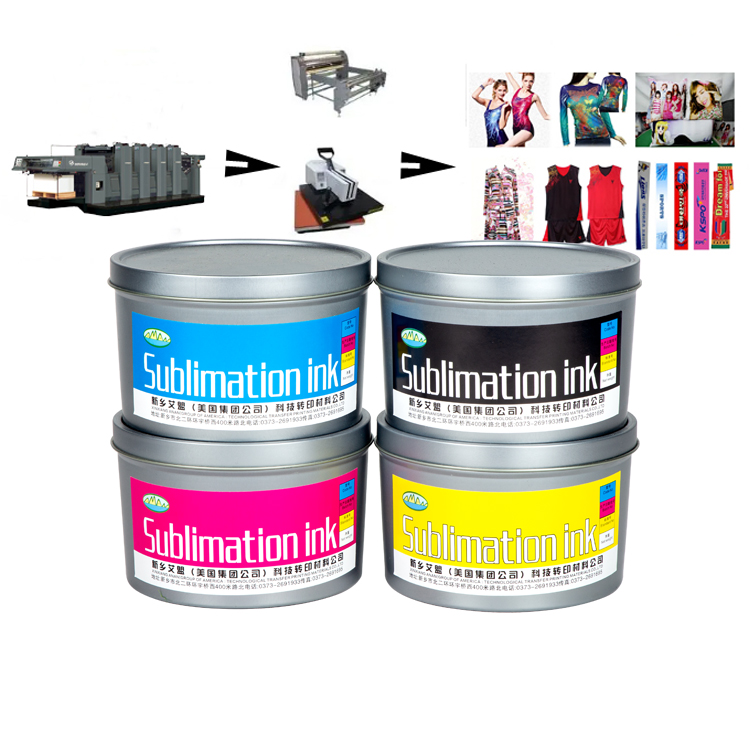

Sublimation offset ink is a type of thermal transfer ink. This process is to first print the ink on paper and then transfer it to the substrate. According to the characteristics of dye sublimation of sublimation ink when exposed to high temperature, the ink is sublimated inside the substrate instead of on the surface. Under certain conditions of temperature, pressure and time, the ink sublimates into a gas phase state and is transferred from the printing paper to the fabric (such as sportswear, non-woven bags, clothing, handicrafts, layered metal, etc.), vapor sublimation diffusion enters the interior of the fabric to achieve the purpose of coloring. There is no hand feeling after transfer printing.

Features and Advantages

Excellent ink balance

High color reproduction,nice and clear gradation

Bright colors,small color difference

Clear restored dots,fast color fixation,stable on the machine.

High light fastness ,high rubbing fastness,high soaping fastness

The image will not fall off, crack or fade

Applicable machines

Parameter

Fabric Name	Transfer Temperature	Transfer Pressure	Transfer Time
Polyester Fabric	205℃-220℃	0.5kg/cm²	10-30s
Polyester Low Flexibility Fabric	195℃-205℃	0.5kg/cm²	30s
Tri-acetate Fiber Fabric	190℃-200℃	0.5kg/cm²	30-40s
Nylon Fabric	195℃-205℃	0.5kg/cm²	30-40s
Acrylic Fabric	200℃-210℃	0.5kg/cm²	30s
Diacetate Fiber Fabric	185℃	0.5kg/cm²	15-20s
Polypropylene Nitrile Fabric	190℃-220℃	0.5kg/cm²	10-15s

Since the company started to develop and produce offset sublimation inks in 1996, after continuous development and technological upgrades, according to the development of the times and the actual requirements of customers, it has developed offset sublimation inks of different grades, including fluorescent offset sublimation inks, to provide customers with much more competitive offset sublimation inks.

The classification of offset sublimation inks is as follows:

Note:All printing inks are environmentally friendly and harmless to the human body
No.	Name	Ink Type	Type			Remarks
1	Offset Sublimation Ink (print on sublimation paper then transfer)	Vegetable Oil Based Dye Ink		AM-OZS	M	no-crust Color powder content from low to high ,the contratioon from low to high	good quality toner
					Y
					C
					K
				AM-OHG	M
					Y
					C
					K
				AM-ODK	M
					Y
					C
					K
				AM-OHB	M		color powder of Magenta is premiun quality
					Y
					C
					K
				AM-OGB	M		all color powder is premium quality
					Y
					C
					K
